Century Automotive CA3-4-13211-1
|
| |
|
Quantity in Basket:
None
Code: CEN-CA3-4-13211-1
Price: $43.12
1 In Stock
|
| |

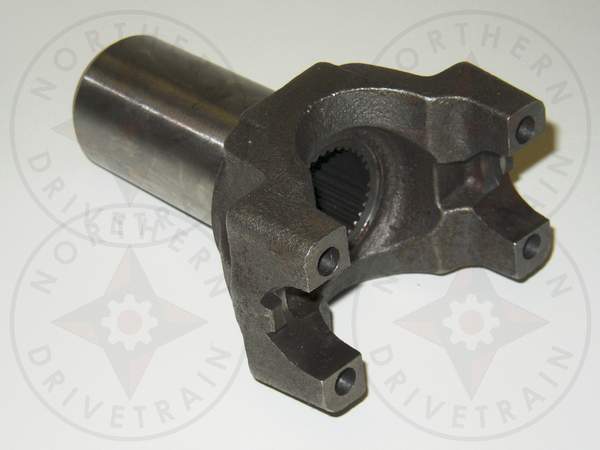

End Yoke - Splined Bore
1350 series, Strap Style, Ø1.378x32 spline, Ø1.885 hub diameter
|
The following parts may be used as alternates for this part:
Dana/Spicer 3-4-13211-1 -- OBSOLETE
This part is a member of the following categories:
Search by Category * End Yokes * Splined Bore * 32 Splines * 1.378 - 32 (31 Based On 32 Spline)
| U-Joint Series |
|
1350 |
| Spline Major Diameter |
|
1.378 |
| Spline Count |
|
32.000 |
| Spline Type |
|
31 Based On 32 Spline |
| Spline Pressure Angle |
|
|
| Ground Hub Diameter |
R |
1.885 |
| Length Thru Bore |
Q |
4.094 |
| Centerline of Joint to End of Spline |
S |
5.594 |
| Universal Joint Retaining Width |
E |
3.625 |
| Universal Joint Bearing Diameter |
D |
1.188 |
| Counterbore Depth |
|
0.000 |
| Joint Angle |
|
22.500 |
| Style |
|
Strap |
| Compatible U-Joint Kits |
|
SPI-5-178X,SPI-5-799X |
| U-Bolt or Strap Assembly |
|
NEA-1-0020 |
| Bare Yoke part number (if assembly - included) |
|
|
| Slinger Part Number (if assembly - included) |
|
|
| Notes |
|
Uses GM brg. strap |
| Cast/Forged |
|
|
|
| |
|
