*** Fits SCS or Pro-Fab Transfer cases and Rockwell Driveshafts ***
|
Ouverson Engineering 2101
|
| |
|
Quantity in Basket:
None
Code: OEM-2101
Price: $125.00
|
| |

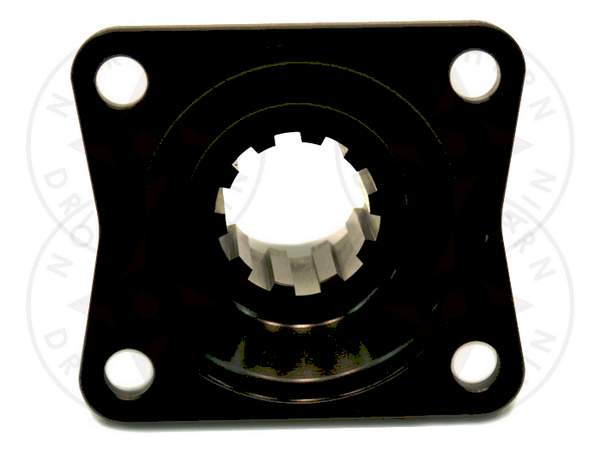

Billet Companion Flange - Splined Bore
1410 series, Ø1750-10 spline
4xØ.500 Holes on 4.75BC, Ø3.75-F pilot
|
This part is a member of the following categories:
Search by Application * Transfer Cases * Pro-Fab
Search by Application * Transfer Cases * SCS
Search by Category * Companion Flanges * Splined Bore * 10 Splines * 1.750 - 10 Spline
| U-Joint Series |
|
1410 |
| Spline Major Diameter |
D |
1.750 |
| Spline Count |
|
10.000 |
| Spline Type |
|
Spline |
| Pilot Bore Diameter |
C |
3.750-F |
| Bolt Circle Diameter |
B |
4.750 |
Bolt Circle Hole Diameter
(D = Drilled, T = Tapped) |
|
.500 D |
| Number of Holes |
|
4.000 |
| Brake Pilot Diameter |
|
0.000 |
| Ground Hub Diameter |
E |
2.375 |
| Length Thru Bore |
F |
2.250 |
| Flange Face to End of Hub |
G |
0.000 |
| Bare Flange Part Number (if assembly) |
|
|
| Slinger Part Number (if assembly) |
|
|
| Notes |
|
SCS or Pro-Fab to Rockwell 2-1/2 Ton Driveshaft |
|
