Northern Drivetrain 00173

Northern Drivetrain 00173 Quantity in Basket: None
Code: NDT-00173
Price: $152.45

5 In Stock



Quantity:

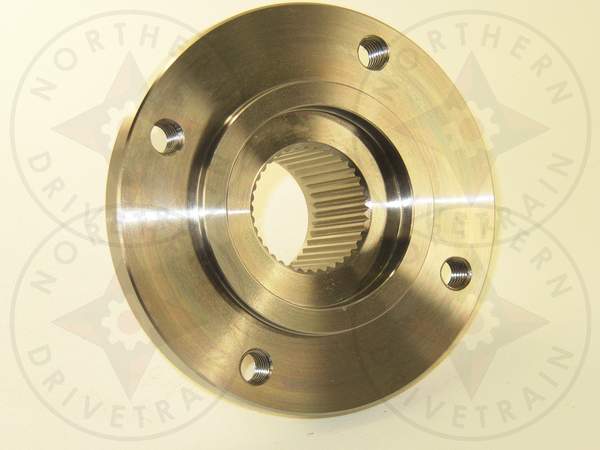

Companion Flange - Splined Bore
1330 series, 1.609-37 spline
4x0.453 Drilled Holes on 4.25BC, 3.125-M pilot



This part is a member of the following categories:

Search by Application * Axles * Dana * 80


U-Joint Series     1330
Spline Major Diameter   D   1.609
Spline Count     37.000
Spline Type     Involute Spline
Pilot Bore Diameter   C   3.125-M
Bolt Circle Diameter   B   4.250
Bolt Circle Hole Diameter
(D = Drilled, T = Tapped)
  .453 D
Number of Holes     4.000
Brake Pilot Diameter     0.000
Ground Hub Diameter   E   2.500
Length Thru Bore   F   2.000
Flange Face to End of Hub   G   2.125
Bare Flange Part Number (if assembly)
Slinger Part Number (if assembly)     SPI-231872HX (not included)
Notes     Square bolt pattern
