This part's status is Backorder
.
|
Neapco N2-2-1369
|
| |
|
Quantity in Basket:
None
Code: NEA-N2-2-1369
Price: $61.45
On Backorder
|
| |

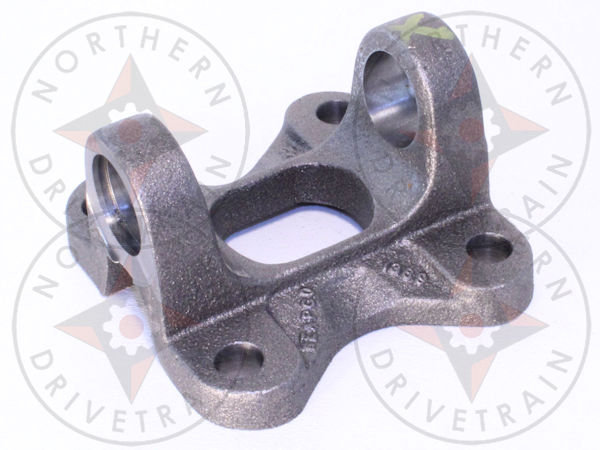

Flange Yoke
1330 series, 4xØ0.488 Holes on 4.250BC, Ø2.000-F pilot
|
The following parts may be used as alternates for this part:
Powertrain Industries 3302-1369 -- In Stock, Our Price: $ 28.01
Dana/Spicer 2-2-1369 -- Not Sold Separately
Ford E9TZ4782B
Ford 4L5Z48866AA
| Design Style |
|
Snap Ring Design |
| U-Joint Series |
|
1330 |
| Universal Joint Retaining Width |
|
3.875 |
| Universal Joint Bearing Diameter |
D |
1.062 |
| Flange Diameter |
A |
5.440 |
| Bolt Circle Diameter |
B |
4.250 |
| Horizontal Distance Between Holes (center to center) |
|
3.005 |
| Vertical Distance Between Holes (center to center) |
|
3.005 |
| Bolt Hole Diameter |
|
0.488-D |
| Bolt Hole Quantity |
|
4.000 |
| Pilot Diameter (M-Male, F-Female) |
C |
2.000F |
| Centerline of Joint to Flange Face |
G |
1.625 |
| Compatible U-Joint Kits |
|
SPI-5-213X,SPI-5-1330X,SPI-SPL25-1X |
| |
|
19.000 |
| Notes |
|
Bolt holes are equally spaced. |
| Cast/Forged |
|
|
Related Item(s)
|
|
Spicer 5-1330X
Code: SPI-5-1330X
Price:
$27.62
In Stock
Quantity in Basket:
none
|
U-Joint - Outside Snap Rings
SPICER 1330 Series, Non-Greasable
Spicer Life Series
|
| |
|
|
|
|
Spicer 5-213X
Code: SPI-5-213X
Price:
$25.54
In Stock
Quantity in Basket:
none
|
U-Joint - Outside Snap Rings
SPICER 1330 Series, Greasable
|
| |
|
|
|
|
| |
|
