This part's status is Obsolete
.


Spicer 2-4-6641-1

Spicer 2-4-6641-1 Quantity in Basket: None
Code: SPI-2-4-6641-1
Price: $45.39

Obsolete

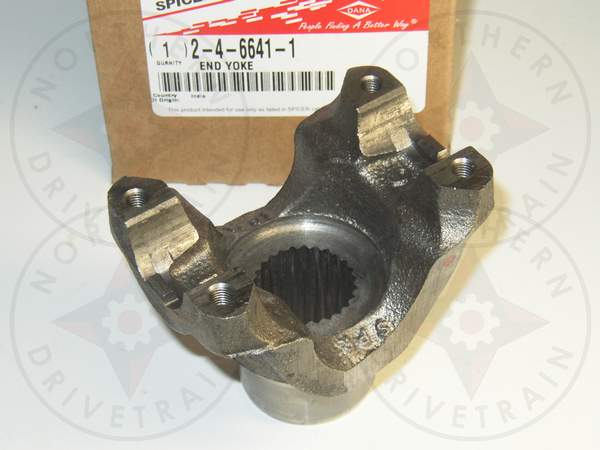

End Yoke - Splined Bore
1310 series, Strap Style, Ø1.146x26 spline, Ø1.552 hub diameter



This part is a member of the following categories:

Search by Application * Axles * Dana * 30
Search by Application * Axles * Dana * 30 - Reverse
Search by Application * Axles * Dana * 36 - Corvette
Search by Application * Axles * Dana * 44
Search by Application * Axles * Dana * 44 - Corvette & Viper
Search by Application * Axles * Dana * 44 IFS (Ford)
Search by Application * Axles * Dana * 44 - Reverse
Search by Application * Axles * Dana * 50
Search by Category * End Yokes * Splined Bore * 26 Splines * 1.146 - 26 Involute


U-Joint Series     1310
Spline Major Diameter     1.146
Spline Count     26.000
Spline Type     Involute
Spline Pressure Angle     45 deg.
Ground Hub Diameter   R   1.552
Length Thru Bore   Q   1.500
Centerline of Joint to End of Spline   S   3.000
Universal Joint Retaining Width   E   3.219
Universal Joint Bearing Diameter   D   1.062
Counterbore Depth     0.000
Joint Angle     30.000
Style     Strap
Compatible U-Joint Kits     SPI-5-153X,SPI-5-1310X,SPI-5-1310-1X
U-Bolt or Strap Assembly     SPI-2-70-18X
Bare Yoke part number (if assembly - included)
Slinger Part Number (if assembly - included)
Notes
Cast/Forged     Cast






Related Item(s)



Spicer 2-70-18X Spicer 2-70-18X
Code: SPI-2-70-18X
Price: $9.79
In Stock
Quantity in Basket: none
Bearing Strap
Fits 1210/1310/1330 U-Joints





Spicer 5-1310-1X Spicer 5-1310-1X
Code: SPI-5-1310-1X
Price: $33.44
In Stock
Quantity in Basket: none
U-Joint - Outside Snap Rings
SPICER 1310 Series, Greasable
Spicer Life Series, Lube fitting in bearing cap





Spicer 5-1310X Spicer 5-1310X
Code: SPI-5-1310X
Price: $24.27
On Backorder
Quantity in Basket: none
U-Joint - Outside Snap Rings
SPICER 1310 Series, Non-Greasable
Spicer Life Series





Spicer 5-153X Spicer 5-153X
Code: SPI-5-153X
Price: $18.65
In Stock
Quantity in Basket: none
U-Joint - Outside Snap Rings
SPICER 1310 Series, Greasable
