Spicer 3-4-13

Spicer 3-4-13 Quantity in Basket: None
Code: SPI-3-4-13
Price: $129.91


Quantity:

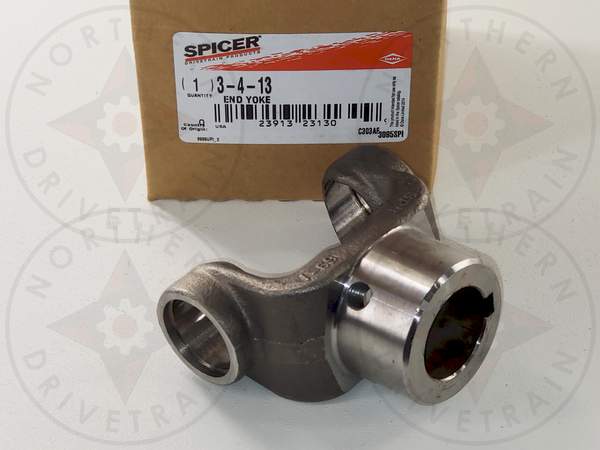

End Yoke - Round Bore
1350 series, 1.250 Bore w/0.312 keyway, 2.000 hub diameter



This part is a member of the following categories:

Search by Category * End Yokes * Round Bore


General Design Type     Round Bore
U-Joint Series     1350
Bore Diameter   P   1.250
SAE Keyway Width   X   0.312
Hub Diameter   R   2.000
Universal Joint Retaining Width   E   3.625
Universal Joint Bearing Diameter   D   1.188
Length Thru Bore   Q   0.000
Centerline of Joint to End of Hub   S   2.750
Set Screw Thread     0.375
Keyway Location     12
Set Screw Location
Clock position viewed at Hub End and Keyway at 12
W
Joint Angle     0.000
Style     Snap Ring
Compatible U-Joint Kits     SPI-5-178X,SPI-5-1350X,SPI-SPL30-1X
U-Bolt or Strap Assembly
Notes     Two set screws, 135 & 225 from keyway
Cast/Forged     Forged






Related Item(s)



Spicer 5-1350X Spicer 5-1350X
Code: SPI-5-1350X
Price: $26.25
In Stock
Quantity in Basket: none
U-Joint - Outside Snap Rings
SPICER 1350 Series, Non-Greasable
Spicer Life Series





Spicer 5-178X Spicer 5-178X
Code: SPI-5-178X
Price: $21.68
In Stock
Quantity in Basket: none
U-Joint - Outside Snap Rings
SPICER 1350 Series, Greasable
