This part's status is Obsolete
.
*** Fits some TH400 fixed yoke applications ***


Spicer 3-4-13511-1

Spicer 3-4-13511-1 Quantity in Basket: None
Code: SPI-3-4-13511-1
Price: $88.64

Obsolete

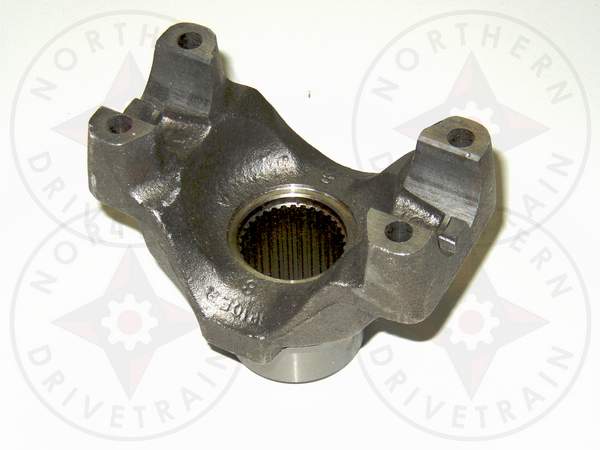

End Yoke - Splined Bore
1410 series, Strap Style, 1.375x32 spline, 1.886 hub diameter





U-Joint Series     1410
Spline Major Diameter     1.375
Spline Count     32.000
Spline Type     Involute
Spline Pressure Angle     22.5 deg
Ground Hub Diameter   R   1.886
Length Thru Bore   Q   2.000
Centerline of Joint to End of Spline   S   3.675
Universal Joint Retaining Width   E   4.188
Universal Joint Bearing Diameter   D   1.188
Counterbore Depth     0.000
Joint Angle     0.000
Style     Strap
Compatible U-Joint Kits     SPI-5-160X,SPI-5-1410X
U-Bolt or Strap Assembly     NEA-1-0020
Bare Yoke part number (if assembly - included)
Slinger Part Number (if assembly - included)
Notes     Uses GM brg. strap
Cast/Forged     Cast






Related Item(s)



Neapco 1-0020 Neapco 1-0020
Code: NEA-1-0020
Price: $7.56
In Stock
Quantity in Basket: none
Bearing Strap
1350/1410 series
GM Style





Spicer 5-1410X Spicer 5-1410X
Code: SPI-5-1410X
Price: $32.81
In Stock
Quantity in Basket: none
U-Joint - Outside Snap Rings
SPICER 1410 Series, Non-Greasable
Spicer Life Series





Spicer 5-160X Spicer 5-160X
Code: SPI-5-160X
Price: $25.30
In Stock
Quantity in Basket: none
U-Joint - Outside Snap Rings
SPICER 1410 Series, Greasable
