Spicer 3-4-2231-1

Spicer 3-4-2231-1 Quantity in Basket: None
Code: SPI-3-4-2231-1
Price: $346.70


Quantity:

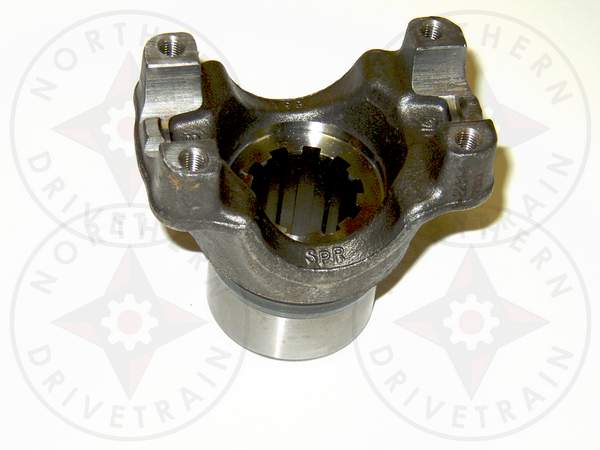

End Yoke - Splined Bore
1350 series, Strap Style, Ø1.500x10 spline, Ø2.253 hub diameter



This part is a member of the following categories:

Search by Category * End Yokes * Splined Bore * 10 Splines * 1.500 - 10 Spline


U-Joint Series     1350
Spline Major Diameter     1.500
Spline Count     10.000
Spline Type     parallel
Spline Pressure Angle     n/a
Ground Hub Diameter   R   2.253
Length Thru Bore   Q   2.185
Centerline of Joint to End of Spline   S   3.905
Universal Joint Retaining Width   E   3.625
Universal Joint Bearing Diameter   D   1.188
Counterbore Depth     0.000
Joint Angle     0.000
Style     Strap
Compatible U-Joint Kits     SPI-5-178X,SPI-5-1350X,SPI-SPL30-1X
U-Bolt or Strap Assembly     SPI-3-70-28X
Bare Yoke part number (if assembly - included)     SPI-3-4-2231-1
Slinger Part Number (if assembly - included)     SPI-230386
Notes
Cast/Forged


This part is used in the following assemblies or kits:

SPI-3-4-3671-1X - End Yoke Assy - Splined Bore -- Obsolete




Related Item(s)



Spicer 3-70-28X Spicer 3-70-28X
Code: SPI-3-70-28X
Price: $8.91
In Stock
Quantity in Basket: none
Bearing Strap
Fits 1350/1410 U-Joints





Spicer 5-1350X Spicer 5-1350X
Code: SPI-5-1350X
Price: $30.79
In Stock
Quantity in Basket: none
U-Joint - Outside Snap Rings
SPICER 1350 Series, Non-Greasable
Spicer Life Series





Spicer 5-178X Spicer 5-178X
Code: SPI-5-178X
Price: $25.76
In Stock
Quantity in Basket: none
U-Joint - Outside Snap Rings
SPICER 1350 Series, Greasable
