American Axle 40007479
|
| |
|
Quantity in Basket:
None
Code: AAM-40007479
Price: $138.58
|
| |

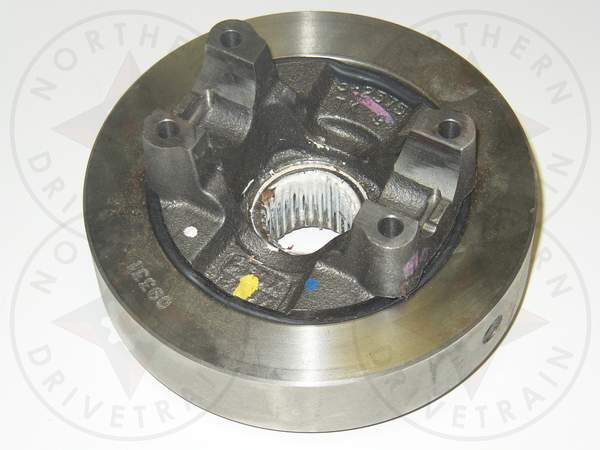

End Yoke - Splined Bore
1485 series, Strap Style, Ø1.590x30 spline, Ø2.370 hub diameter
|
The following parts may be used as alternates for this part:
12471498
This part is a member of the following categories:
Search by Application * Axles * GM * 10.5" - 14 Bolt, 1999 & Later
Search by Category * End Yokes * Splined Bore * 30 Splines * 1.590 - 30 Involute
| U-Joint Series |
|
1485 |
| Spline Major Diameter |
|
1.590 |
| Spline Count |
|
30.000 |
| Spline Type |
|
Involute |
| Spline Pressure Angle |
|
37.5 deg. |
| Ground Hub Diameter |
R |
2.380 |
| Length Thru Bore |
Q |
1.625 |
| Centerline of Joint to End of Spline |
S |
3.956 |
| Universal Joint Retaining Width |
E |
4.188 |
| Universal Joint Bearing Diameter |
D |
1.188 |
| Counterbore Depth |
|
0.000 |
| Joint Angle |
|
0.000 |
| Style |
|
Strap |
| Compatible U-Joint Kits |
|
SPI-5-160X,SPI-5-801X |
| U-Bolt or Strap Assembly |
|
2x GMC-679385 and 4x GMC-14018700 |
| Bare Yoke part number (if assembly - included) |
|
|
| Slinger Part Number (if assembly - included) |
|
|
| Notes |
|
Includes balancer on pinion hub. Pinion seal included. |
| Cast/Forged |
|
Cast |
|
| |
|
