*** Includes NDT-3-94-18X U-Bolt Kit, must change pinion seal on truck axles ***
|
Northern Drivetrain 00144
|
| |
|
Quantity in Basket:
None
Code: NDT-00144
Price: $117.53
9 In Stock
|
| |

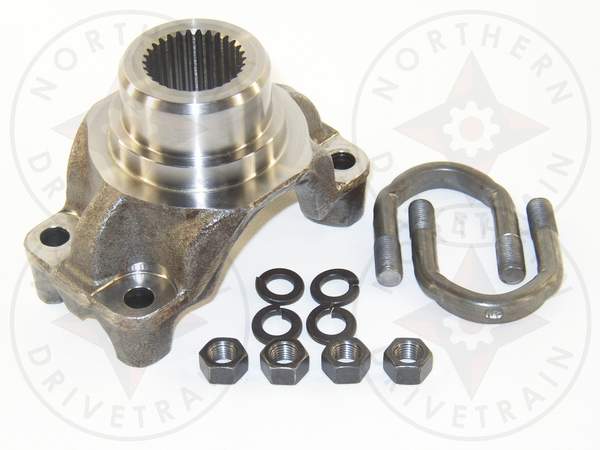

End Yoke - Splined Bore
FORGED 1410 series, U Bolt Style, Ø1.326x30 spline, Ø1.940 hub diameter
8.875 12 Bolt
|
This forged 1410 series pinion yoke is made for the GM 12 bolt axles. It comes with the larger Ø1.940 hub used in 12 bolt car axles, but can be used on the 12 bolt truck pinion if the seal is changed to a National/Timken 8622 or a SKF 19274. The 12 bolt axles use a yoke that is very similar to the 10 bolt, as well as the 9.5" 14 bolt and the Chrysler 9.25 front. However, the spline is diffferent and they are not interchangeable. For those axles see NDT-00182.
This part is a member of the following categories:
Search by Application * Search by Axle * GM * 8.875 - Car (12P)
Search by Application * Search by Axle * GM * 8.875 - Truck (12T)
Search by Category * End Yokes * Splined Bore * 30 Splines * Ø1.328 - 30 Involute
| U-Joint Series |
|
1410 |
| Spline Major Diameter |
|
1.326 |
| Spline Count |
|
30.000 |
| Spline Type |
|
Involute |
| Spline Pressure Angle |
|
30 deg. |
| Ground Hub Diameter |
R |
1.940 |
| Length Thru Bore |
Q |
1.156 |
| Centerline of Joint to End of Spline |
S |
3.145 |
| Universal Joint Retaining Width |
E |
4.188 |
| Universal Joint Bearing Diameter |
D |
1.188 |
| Counterbore Depth |
|
0.000 |
| Joint Angle |
|
30.000 |
| Style |
|
U Bolt |
| Compatible U-Joint Kits |
|
SPI-5-160X,SPI-5-1410X |
| U-Bolt or Strap Assembly |
|
NDT-3-94-18X (included) |
| Bare Yoke part number (if assembly - included) |
|
|
| Slinger Part Number (if assembly - included) |
|
Can use SPI-231356 (not included) |
| Notes |
|
FORGED |
| Cast/Forged |
|
Forged |
