*** Fits our HD center bearing kit and NWFab Titan output shafts ***

Northern Drivetrain 00192
	Quantity in Basket: None Code: NDT-00192 Price: $179.30 10 In Stock
	Quantity:

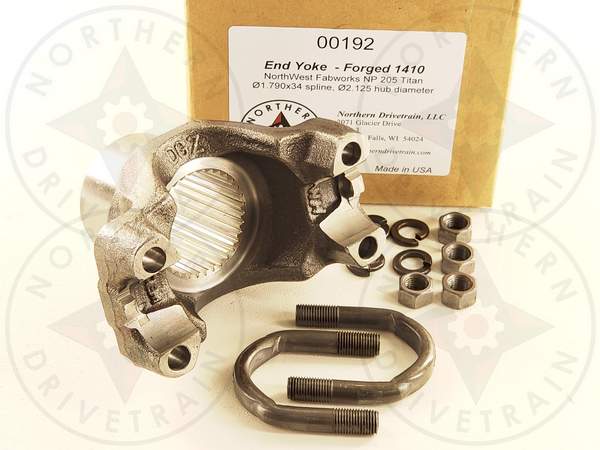

End Yoke - Forged - Splined Bore 1410 series, U Bolt Style, Ø1.790x34 spline, Ø2.125 hub diameter

This forged 1410 ubolt style yoke fits the Northwest Fab Titan output shaft kit for the NP205 transfer case. It also fits our NDT-00186 high strength center bearing kit.

This part is a member of the following categories:

Search by Category * End Yokes * Splined Bore * 34 Splines * Ø1.790 - 34 Involute

U-Joint Series		1410
Spline Major Diameter		1.790
Spline Count		34.000
Spline Type		Involute
Spline Pressure Angle		37.5 deg.
Ground Hub Diameter	R	2.125
Length Thru Bore	Q	2.000
Centerline of Joint to End of Spline	S	3.690
Universal Joint Retaining Width	E	4.188
Universal Joint Bearing Diameter	D	1.188
Counterbore Depth		0.000
Joint Angle		30.000
Style		U Bolt
Compatible U-Joint Kits		SPI-5-160X,SPI-5-1410X
U-Bolt or Strap Assembly		NDT-3-94-18X (included)
Bare Yoke part number (if assembly - included)
Slinger Part Number (if assembly - included)		Can use ROK-DEFR34-1 (not included)
Notes		FORGED
Cast/Forged		Forged
