Northern Drivetrain 3-4-13881
|
| |
|
Quantity in Basket:
None
Code: NDT-3-4-13881
Price: $120.35
7 In Stock
|
| |

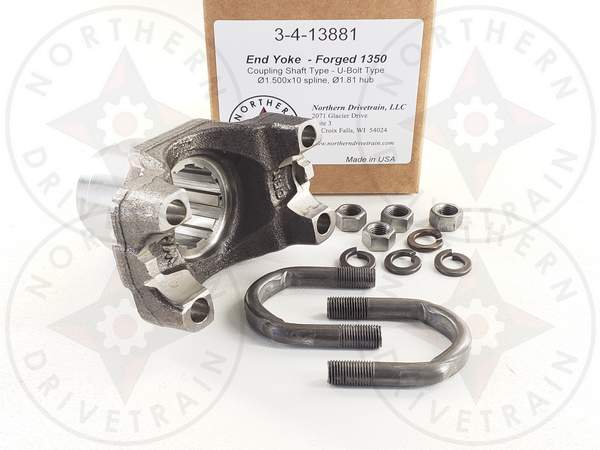

End Yoke - Splined Bore
1350 series, U-Bolt Style, Ø1.500x10 spline, Ø1.881 hub diameter
|
This forged ubolt 1350 series yoke is designed for 1-1/2x10 spline midship bearing applications. It is commonly used in 2 piece front drivelines used in buggies and rock rigs.
This part is a member of the following categories:
Search by Category * End Yokes * Splined Bore * 10 Splines * Ø1.500 - 10 Spline
| U-Joint Series |
|
1350 |
| Spline Major Diameter |
|
1.500 |
| Spline Count |
|
10.000 |
| Spline Type |
|
parallel |
| Spline Pressure Angle |
|
n/a |
| Ground Hub Diameter |
R |
1.810 |
| Length Thru Bore |
Q |
2.000 |
| Centerline of Joint to End of Spline |
S |
3.688 |
| Universal Joint Retaining Width |
E |
3.625 |
| Universal Joint Bearing Diameter |
D |
1.188 |
| Counterbore Depth |
|
0.000 |
| Joint Angle |
|
22.000 |
| Style |
|
U Bolt |
| Compatible U-Joint Kits |
|
SPI-5-178X,SPI-5-1350X,SPI-SPL30-1X |
| U-Bolt or Strap Assembly |
|
NDT-3-94-18X (included) |
| Bare Yoke part number (if assembly - included) |
|
|
| Slinger Part Number (if assembly - included) |
|
|
| Notes |
|
Coupling shaft yoke - hub diameter not ground |
| Cast/Forged |
|
Forged |
|
| |
|
