*** Forged ***


Northern Drivetrain 3-4-9931

Northern Drivetrain 3-4-9931 Quantity in Basket: None
Code: NDT-3-4-9931
Price: $146.49

Out of Stock

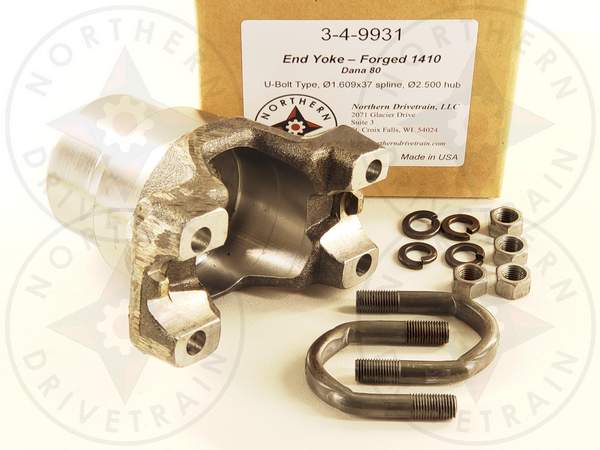

End Yoke Assy - Splined Bore
FORGED 1410 series, U Bolt Style, 1.609x37 spline, 2.500 hub diameter



This part is a member of the following categories:

Search by Application * Axles * Dana * 80
Search by Category * End Yokes * Splined Bore * 37 Splines * 1.609 - 37 Involute


U-Joint Series     1410
Spline Major Diameter     1.609
Spline Count     37.000
Spline Type     Involute
Spline Pressure Angle     45 deg.
Ground Hub Diameter   R   2.500
Length Thru Bore   Q   2.000
Centerline of Joint to End of Spline   S   4.231
Universal Joint Retaining Width   E   4.188
Universal Joint Bearing Diameter   D   1.188
Counterbore Depth     0.240
Joint Angle     20.000
Style     U Bolt
Compatible U-Joint Kits     SPI-5-160X,SPI-5-1410X
U-Bolt or Strap Assembly     NDT-3-94-18X (included)
Bare Yoke part number (if assembly - included)
Slinger Part Number (if assembly - included)     SPI-231872HX (not included)
Notes     FORGED
Cast/Forged     Forged
