Neapco 10-0423

Neapco 10-0423 Quantity in Basket: None
Code: NEA-10-0423
Price: $16.54

1 In Stock



Quantity:

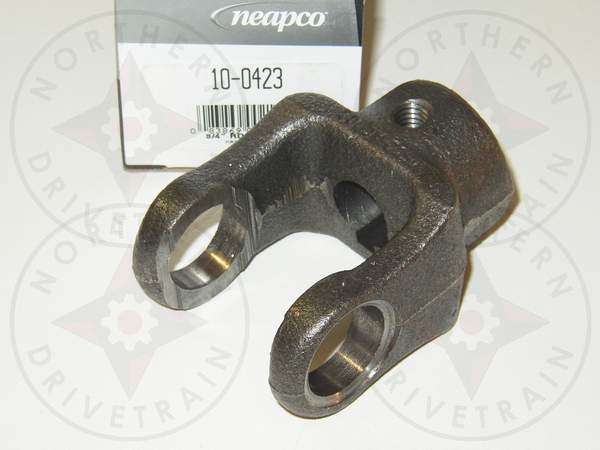

End Yoke - Round Bore
1000 series, 0.750 Bore w/0.25 keyway, 1.625 hub diameter


The following parts may be used as alternates for this part:

Rockwell/Meritor 10N-4-23
Dana/Spicer 10-4-23

This part is a member of the following categories:

Search by Category * End Yokes * Round Bore


General Design Type     Round Bore
U-Joint Series     1000
Bore Diameter   P   0.750
SAE Keyway Width   X   0.250
Hub Diameter   R   1.625
Universal Joint Retaining Width   E   1.500
Universal Joint Bearing Diameter   D   0.938
Length Thru Bore   Q   0.000
Centerline of Joint to End of Hub   S   2.500
Set Screw Thread     0.375-16
Keyway Location     GAP
Set Screw Location
Clock position viewed at Hub End and Keyway at 12
W   GAP
Joint Angle     0.000
Style     Inside Snap Ring
Compatible U-Joint Kits     SPI-5-170X,SPI-5-110X
U-Bolt or Strap Assembly
Notes
Cast/Forged






Related Item(s)



Spicer 5-170X Spicer 5-170X
Code: SPI-5-170X
Price: $16.70
In Stock
Quantity in Basket: none
U-Joint - Inside Snap Rings
SPICER 1000 Series, Greasable





Spicer 5-110X Spicer 5-110X
Code: SPI-5-110X
Price: $26.88
In Stock
Quantity in Basket: none
U-Joint - Inside Snap Rings
SPICER 1000 Series, Non-Greasable
