Neapco N2-2-780
|
| |
|
Quantity in Basket:
None
Code: NEA-N2-2-780
Price: $54.37
1 In Stock
|
| |

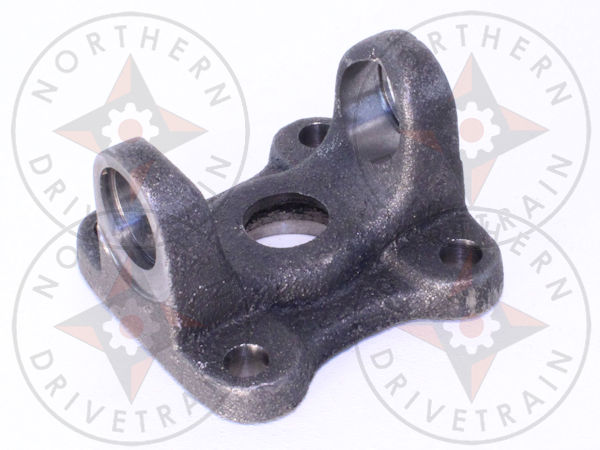

Flange Yoke
1310 series, 4xØ0.448 Holes on 3.674BC, Ø1.810-M pilot
|
The following parts may be used as alternates for this part:
Dana/Spicer 5001902 -- Obsolete
Powertrain Industries 3102-185
Dana/Spicer 2-2-01902 -- Obsolete
| Design Style |
|
Snap Ring Design |
| U-Joint Series |
|
1310 |
| Universal Joint Retaining Width |
|
3.469 |
| Universal Joint Bearing Diameter |
D |
1.062 |
| Flange Diameter |
A |
4.380 |
| Bolt Circle Diameter |
B |
3.674 |
| Horizontal Distance Between Holes (center to center) |
|
2.589 |
| Vertical Distance Between Holes (center to center) |
|
2.589 |
| Bolt Hole Diameter |
|
.448-D |
| Bolt Hole Quantity |
|
4.000 |
| Pilot Diameter (M-Male, F-Female) |
C |
1.810M |
| Centerline of Joint to Flange Face |
G |
1.562 |
| Compatible U-Joint Kits |
|
SPI-5-153X,SPI-5-1310X,SPI-5-1310-1X |
| |
|
20.000 |
| Notes |
|
|
| Cast/Forged |
|
|
