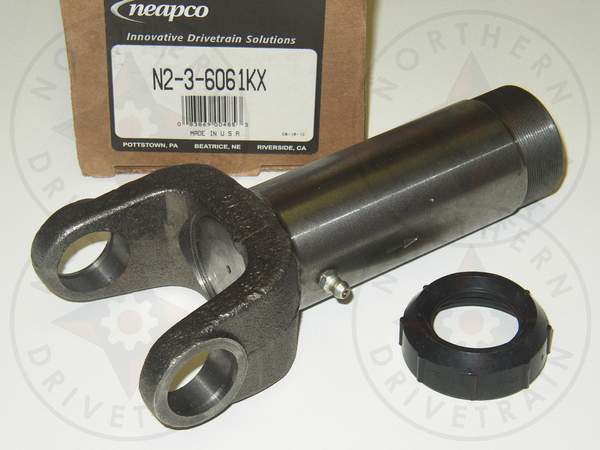

Neapco N2-3-6061KX

Neapco N2-3-6061KX Quantity in Basket: None
Code: NEA-N2-3-6061KX
Price: $96.03

1 In Stock



Quantity:

Slip Yoke
1310 series, 1.500x16 spline
6.875 Centerline to End


The following parts may be used as alternates for this part:

Dana/Spicer 2-3-6061KX
Rockwell/Meritor 131N-3-6061KX

This part is a member of the following categories:

Search by Category * Driveshaft Components * Slip Yokes * 1.500 - 16 Spline


General Design Type     LD-MD Driveshaft
U-Joint Series     1310
Spline Major Diameter     1.500
Spline Count     16.000
Spline Type     Parallel
Max Joint Angle     0.000
Universal Joint Retaining Width   E   3.469
Universal Joint Bearing Diameter   D   1.063
Centerline of Joint to End of Spline   J   6.875
Centerline of Joint to Face of Plug   F   1.530
Part Number of Lube Fitting     NEA-0641-B
Dust Cap & Washer Kit Number     NEA-ND3A
Slip Yoke Plug part number (included)
Boot Kit Assembly part number (order separately)
Compatible U-Joint Kits     SPI-5-153X,SPI-5-1310X,SPI-5-1310-1X
Style     Snap Ring
Notes
    Cast



This part contains the following parts:

NEA-0641-B - Grease Fitting
NEA-ND3A - Drive Shaft Dust Seal --
