Neapco N2-83-206
|
| |
|
Quantity in Basket:
None
Code: NEA-N2-83-206
Price: $152.66
|
| |
Flange Yoke
1310 series, 6xØ.323 Holes on 3.386BC, Ø3.937M pilot
|
The following parts may be used as alternates for this part:
| Design Style |
|
Half Round CV Flange Adapter |
| U-Joint Series |
|
1310 |
| Universal Joint Retaining Width |
|
3.219 |
| Universal Joint Bearing Diameter |
D |
1.063 |

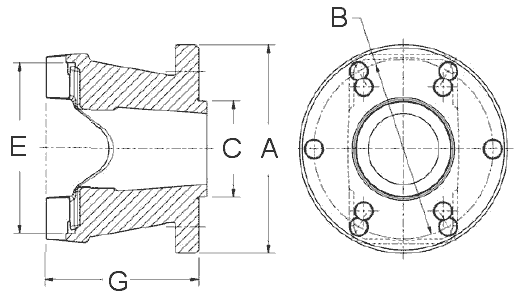

| Flange Diameter |
A |
3.937 |
| Bolt Circle Diameter |
B |
3.386 |
| Horizontal Distance Between Holes (center to center) |
|
0.000 |
| Vertical Distance Between Holes (center to center) |
|
0.000 |
| Bolt Hole Diameter |
|
.323-D |
| Bolt Hole Quantity |
|
6.000 |
| Pilot Diameter (M-Male, F-Female) |
C |
3.937M |
| Centerline of Joint to Flange Face |
G |
2.910 |
| Compatible U-Joint Kits |
|
SPI-5-153X,SPI-5-1310X,SPI-5-1310-1X |
| |
|
0.000 |
| Notes |
|
Half Round CV Flange Adapter |
| Cast/Forged |
|
|
This part is used in the following assemblies or kits:
This part contains the following parts:
