This part's status is Limited Availability
.
|
Neapco N3-1-1023-1
|
| |
|
Quantity in Basket:
None
Code: NEA-N3-1-1023-1
Price: $96.36
1 In Stock
|
| |
Companion Flange - Circular w/Straight Round Bore
1350 / 1410 series, Ø2.000 Bore w/0.500 keyway
4x7/16-20 Tapped Holes, Ø2.750 pilot
|
This part is a member of the following categories:
Search by Category * Companion Flanges * Circular with Straight Round Hole

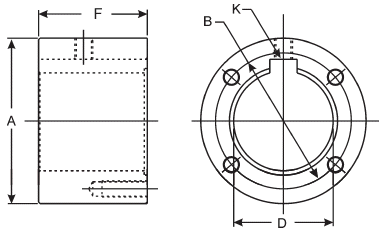

| U-Joint Series |
|
1350 / 1410 |
| Bore Diameter |
D |
2.000 |
| Keyway Size |
K |
0.500 |
| Flange Diameter |
A |
4.560 |
| Pilot Bore Diameter |
C |
2.750 |
| Bolt Circle Diameter |
B |
3.750 |
Bolt Hole Diameter
(D = Drilled, T = Tapped) |
|
7/16-20-T |
| Number of Holes |
|
4.000 |
| Ground Hub Diameter |
E |
0.000 |
| Length Thru Bore |
F |
3.000 |
| Notes |
|
3/8-16 Set Screw |
|
| |
|
