Neapco N3-1-1023-3
|
|
|
Quantity in Basket:
None
Code: NEA-N3-1-1023-3
Price: $92.50
1 In Stock
|
|

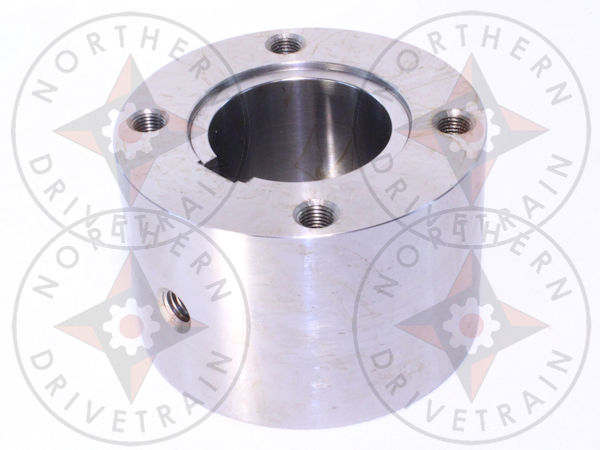

Companion Flange - Circular w/Straight Round Bore 1350 / 1410 series, Ø2.250 Bore w/0.625 keyway 4x7/16-20 Tapped Holes, Ø2.750 pilot
|
The following parts may be used as alternates for this part:
Dana/Spicer 3-1-1023-3
This part is a member of the following categories:
Search by Category * Companion Flanges * Circular with Straight Round Hole
U-Joint Series |
|
1350 / 1410 |
Bore Diameter |
D |
2.250 |
Keyway Size |
K |
0.625 |
Flange Diameter |
A |
4.560 |
Pilot Bore Diameter |
C |
2.750 |
Bolt Circle Diameter |
B |
3.750 |
Bolt Hole Diameter (D = Drilled, T = Tapped) |
|
7/16-20-T |
Number of Holes |
|
4.000 |
Ground Hub Diameter |
E |
0.000 |
Length Thru Bore |
F |
3.000 |
Notes |
|
3/8-16 Set Screw |
This part is used in the following assemblies or kits:
This part contains the following parts:
|
|
|
