Neapco N6-1-1253-10
Neapco N6-1-1253-10 Quantity in Basket: None
Code: NEA-N6-1-1253-10
Price: $463.40


Companion Flange - Circular w/Straight Round Bore
1710 series, 2.125 Bore w/0.500 keyway
8x0.386 Holes, 7.750-F pilot

The following parts may be used as alternates for this part:

This part is a member of the following categories:

Search by Category * Companion Flanges * Circular with Straight Round Hole

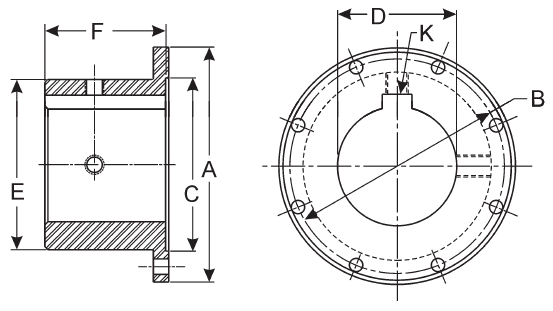

U-Joint Series     1710
Bore Diameter   D   2.125
Keyway Size   K   0.500
Flange Diameter   A   8.000
Pilot Bore Diameter   C   7.750-F
Bolt Circle Diameter   B   7.250
Bolt Hole Diameter
(D = Drilled, T = Tapped)
Number of Holes     8.000
Ground Hub Diameter   E   0.000
Length Thru Bore   F   4.000

This part is used in the following assemblies or kits:

This part contains the following parts:
