Neapco N6.5-1-533-7
|
|
|
Quantity in Basket:
None
Code: NEA-N6_5-1-533-7
Price: $492.85
|
|
Companion Flange - Circular w/Straight Round Bore 1810 series, Ø3.938 Bore w/1.000 keyway 12xØ0.451 Holes, Ø7.750-F pilot
|
This part is a member of the following categories:
Search by Category * Companion Flanges * Circular with Straight Round Hole

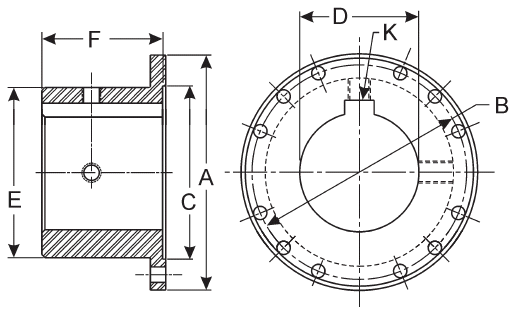

U-Joint Series |
|
1810 |
Bore Diameter |
D |
3.938 |
Keyway Size |
K |
1.000 |
Flange Diameter |
A |
8.000 |
Pilot Bore Diameter |
C |
7.750-F |
Bolt Circle Diameter |
B |
7.250 |
Bolt Hole Diameter (D = Drilled, T = Tapped) |
|
0.451-D |
Number of Holes |
|
12.000 |
Ground Hub Diameter |
E |
0.000 |
Length Thru Bore |
F |
4.000 |
Notes |
|
|
|
|
|
