Powertrain Industries 3101-02
	Quantity in Basket: None Code: PTI-3101-02 Price: $61.45 Obsolete

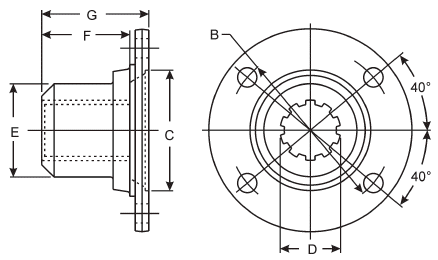

Companion Flange - Splined Bore 1310/1330 series, Ø1.312x30 spline, Ø1.812 hub diameter 4 Holes on 3.500BC, 2.000 Pilot

The following parts may be used as alternates for this part:

U-Joint Series		1310/1330
Spline Major Diameter	D	1.312
Spline Count		30.000
Spline Type		Involute Spline
Pilot Bore Diameter	C	2.000
Bolt Circle Diameter	B	3.500
Bolt Circle Hole Diameter (D = Drilled, T = Tapped)
Number of Holes		4.000
Brake Pilot Diameter		0.000
Ground Hub Diameter	E	1.812
Length Thru Bore	F	1.242
Flange Face to End of Hub	G	1.468
Bare Flange Part Number (if assembly)
Slinger Part Number (if assembly)
Notes		Superseded by PTI-3301-302

This part is used in the following assemblies or kits:

This part contains the following parts:

Related Item(s)

Powertrain Industries 3301-302 Code: PTI-3301-302 Price: $51.81 Normally drop ships in 1-3 business days Quantity in Basket: none 8.8F 30spl Pinion Flange
