Powertrain Industries 3102-392X
|
| |
|
Quantity in Basket:
None
Code: PTI-3102-392X
Price: $58.79
1 In Stock
|
| |

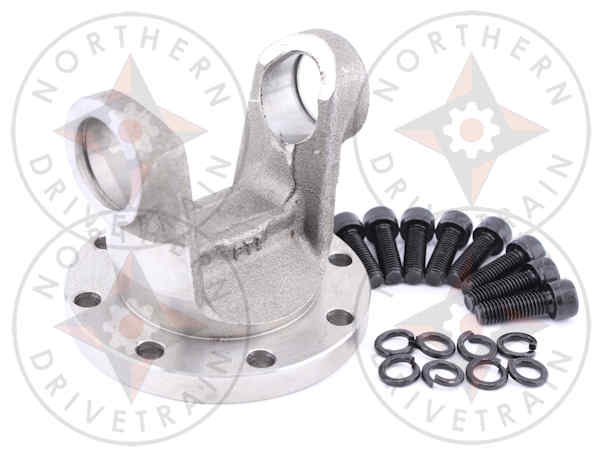

Flange Yoke
1310 series, 8xØ.322 Holes on 3.386 BC, Ø3.920M pilot
|
| Design Style |
|
Snap Ring Design |
| U-Joint Series |
|
1310 |
| Universal Joint Retaining Width |
|
3.469 |
| Universal Joint Bearing Diameter |
D |
1.062 |
| Flange Diameter |
A |
3.920 |
| Bolt Circle Diameter |
B |
3.386 |
| Horizontal Distance Between Holes (center to center) |
|
0.000 |
| Vertical Distance Between Holes (center to center) |
|
0.000 |
| Bolt Hole Diameter |
|
.322-D |
| Bolt Hole Quantity |
|
8.000 |
| Pilot Diameter (M-Male, F-Female) |
C |
3.920M |
| Centerline of Joint to Flange Face |
G |
2.750 |
| Compatible U-Joint Kits |
|
SPI-5-153X,SPI-5-1310X,SPI-5-1310-1X |
| |
|
0.000 |
| Notes |
|
CV replacement for 2007 and later Jeep JK @ Differential, Pilot is flange OD |
| Cast/Forged |
|
Forged |
|
| |
|
