Powertrain Industries 3304-29

Powertrain Industries 3304-29 Quantity in Basket: None
Code: PTI-3304-29
Price: $63.00

1 In Stock



Quantity:

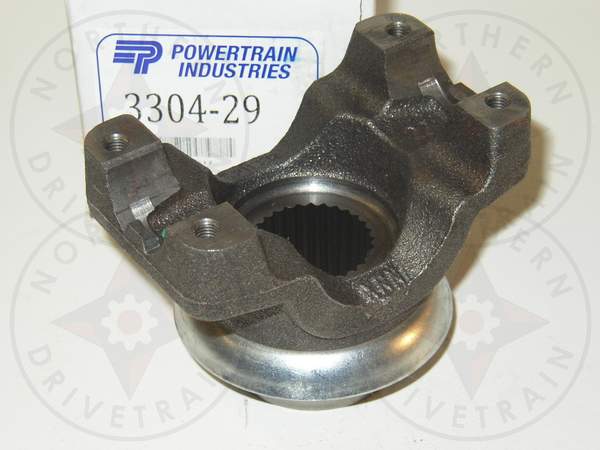

End Yoke - Splined Bore
1330 series, Strap Style, Ø1.276x29 spline, Ø1.875 hub diameter


The following parts may be used as alternates for this part:

Dana/Spicer 2-4-8051-1X -- In Stock, Our Price: $ 127.19

This part is a member of the following categories:

Search by Application * Axles * Dana * 60
Search by Application * Axles * Dana * 60 - Reverse
Search by Application * Axles * Dana * 61
Search by Application * Axles * Dana * 70
Search by Category * End Yokes * Splined Bore * 29 Splines * 1.276 - 29 Involute


U-Joint Series     1330
Spline Major Diameter     1.276
Spline Count     29.000
Spline Type     Involute
Spline Pressure Angle     45 deg.
Ground Hub Diameter   R   1.875
Length Thru Bore   Q   1.500
Centerline of Joint to End of Spline   S   2.938
Universal Joint Retaining Width   E   3.625
Universal Joint Bearing Diameter   D   1.062
Counterbore Depth     0.000
Joint Angle     18.500
Style     Strap
Compatible U-Joint Kits     SPI-5-213X,SPI-5-1330X,SPI-SPL25-1X
U-Bolt or Strap Assembly     SPI-2-70-18X
Bare Yoke part number (if assembly - included)
Slinger Part Number (if assembly - included)
Notes
Cast/Forged     Cast






Related Item(s)



Spicer 5-1330X Spicer 5-1330X
Code: SPI-5-1330X
Price: $26.16
In Stock
Quantity in Basket: none
U-Joint - Outside Snap Rings
SPICER 1330 Series, Non-Greasable
Spicer Life Series





Spicer 5-213X Spicer 5-213X
Code: SPI-5-213X
Price: $24.91
In Stock
Quantity in Basket: none
U-Joint - Outside Snap Rings
SPICER 1330 Series, Greasable





Spicer 2-70-18X Spicer 2-70-18X
Code: SPI-2-70-18X
Price: $9.79
In Stock
Quantity in Basket: none
Bearing Strap
Fits 1210/1310/1330 U-Joints
