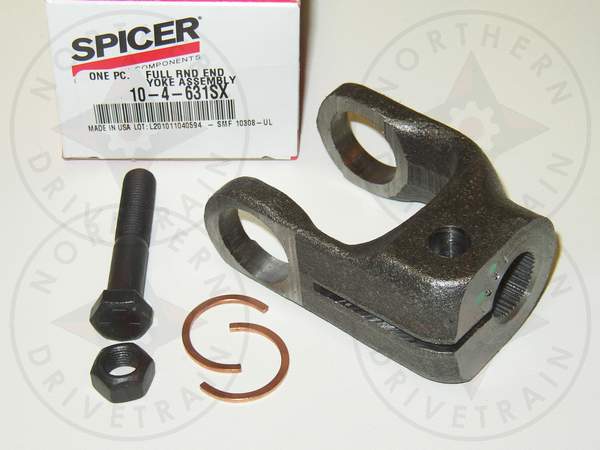

Spicer 10-4-631SX
|
| |
|
Quantity in Basket:
None
Code: SPI-10-4-631SX
Price: $37.11
1 In Stock
|
| |
Steering Shaft Yoke
1000 series, Ø0.739x30 spline
|
This part is a member of the following categories:
Search by Category * End Yokes * Steering Yokes
| General Design Type |
|
Serrated Bore |
| U-Joint Series |
|
1000 |
| Spline Major Diameter |
|
0.739 |
| Spline Minor Diameter (Nominal) |
|
0.696 |
| Spline Type |
|
30 Based On 36 Spline |
| Bore Diameter |
|
|
| Keyway Size |
|
0.000 |
| Bolt Hole Diameter |
|
0.406 |
| |
|
2.030 |
| Centerline of Bolt Hole to End of Hub |
J |
0.470 |
| Top of Bolt Hole to Centerline of Spline |
L |
0.000 |
| Center of Bolt Hole to Center of Spline |
L1 |
0.470 |
| Centerline of Joint to End of Hub |
S |
2.500 |
| Universal Joint Retaining Width |
K |
1.500 |
| Universal Joint Bearing Diameter |
D |
0.938 |
| Compatible U-Joint Kits |
|
SPI-5-103X |
| Notes |
|
|
| Cast/Forged |
|
Forged |
Known Idenfiying Marks (Casting/Forging numbers, etc.):
| | Mark | | Location |
| |
C7N20
| |
in base of yoke ear |
|
| |
|
