This part's status is Obsolete
.


Spicer 100-2-159

Spicer 100-2-159 Quantity in Basket: None
Code: SPI-100-2-159
Price: $999,999.00

Obsolete




Flange Yoke

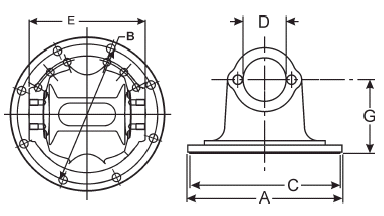

SPL100 series, 8x.399 Holes on 7.250BC, 7.750M pilot





Design Style     Spicer Life Series
U-Joint Series     SPL100
Universal Joint Retaining Width     5.380
Universal Joint Bearing Diameter   D   1.626
Flange Diameter   A   8.000
Bolt Circle Diameter   B   7.250
Horizontal Distance Between Holes (center to center)     0.000
Vertical Distance Between Holes (center to center)     0.000
Bolt Hole Diameter     .399-D
Bolt Hole Quantity     8.000
Pilot Diameter (M-Male, F-Female)   C   7.750M
Centerline of Joint to Flange Face   G   3.250
Compatible U-Joint Kits     SPI-SPL100-1X
    0.000
Notes
Cast/Forged






Related Item(s)



Spicer SPL100-1X Spicer SPL100-1X
Code: SPI-SPL100-1X
Price: $92.96
Normally drop ships in 1-3 business days
Quantity in Basket: none
U-Joint - Outside Snap Rings
SPICER SPL100 Series, Greasable
Dimensionally same as SPI-SPL90X
Replacement Bearing Seal Protector = SPI-232884-1
