This part's status is Mfr Non Inventory
.
|
Spicer 2-1-634
|
| |
|
Quantity in Basket:
None
Code: SPI-2-1-634
Price: $285.27
1 In Stock
|
| |
Companion Flange - Rectangular w/Tapered Bore
1310 series, Ø1.375 SAE Taper Bore w/0.375 keyway
4xØ0.375 on 3.125BC, Ø2.3750-F pilot, Ø2.250 hub diameter
|
This part is a member of the following categories:
Search by Category * Companion Flanges * Rectangular with Tapered Hole

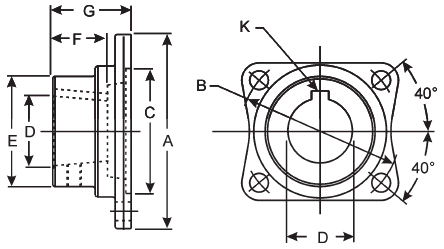

| U-Joint Series |
|
1310 - 1.375 SAE Taper |
| Bore Diameter |
D |
1.375 |
| Keyway Size |
|
0.375 |
| Swing Diameter |
A |
3.875 |
| Pilot Bore Diameter |
C |
2.3750-F |
| Bolt Circle Diameter |
B |
3.125 |
| Bolt Hole Diameter |
|
.375 |
| Number of Holes |
|
4.000 |
| Ground Hub Diameter |
E |
2.250 |
| Length Thru Bore |
F |
2.000 |
| Flange Face to End of Hub |
G |
2.625 |
| Brake Pilot Diameter |
|
0.000 |
| Notes |
|
|
|
| |
|
