Spicer 2-2-1379
|
| |
|
Quantity in Basket:
None
Code: SPI-2-2-1379
Price: $89.92
2 In Stock
|
| |

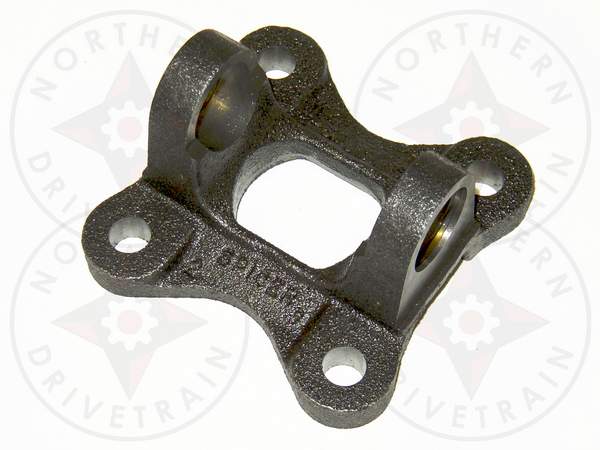

Flange Yoke
1310 series, 4xØ.484 Holes on 4.250BC, Ø2.000F pilot
|
The following parts may be used as alternates for this part:
Neapco N2-2-1379 -- In Stock, Our Price: $ 70.67
This part is a member of the following categories:
Search by Category * Flange Yokes * 1310
| Design Style |
|
Snap Ring Design |
| U-Joint Series |
|
1310 |
| Universal Joint Retaining Width |
|
3.469 |
| Universal Joint Bearing Diameter |
D |
1.062 |
| Flange Diameter |
A |
5.219 |
| Bolt Circle Diameter |
B |
4.250 |
| Horizontal Distance Between Holes (center to center) |
|
3.005 |
| Vertical Distance Between Holes (center to center) |
|
3.005 |
| Bolt Hole Diameter |
|
.484-D |
| Bolt Hole Quantity |
|
4.000 |
| Pilot Diameter (M-Male, F-Female) |
C |
2.000F |
| Centerline of Joint to Flange Face |
G |
1.625 |
| Compatible U-Joint Kits |
|
SPI-5-153X,SPI-5-1310X,SPI-5-1310-1X |
| |
|
0.000 |
| Notes |
|
Bolt holes are equally spaced. Part has hole thru center. |
| Cast/Forged |
|
Cast |
Known Idenfiying Marks (Casting/Forging numbers, etc.):
| | Mark | | Location |
| |
C2-2-671
| |
cast into base of flange yoke, only part with |
