This part's status is Obsolete
.

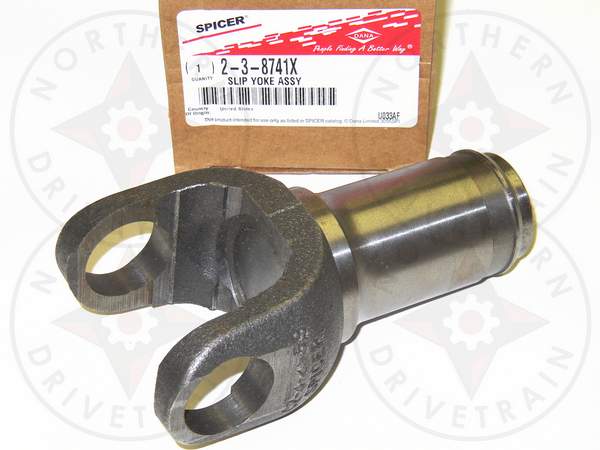

Spicer 2-3-8741X

Spicer 2-3-8741X Quantity in Basket: None
Code: SPI-2-3-8741X
Price: $136.74

Obsolete




Slip Yoke
1310WJ series, Ø1.390x31 spline
5.062 Centerline to End



This part is a member of the following categories:

Search by Category * Driveshaft Components * Slip Yokes * 1.390 - 31 (30 Based On 31 Spline)


General Design Type     LD-MD Driveshaft
U-Joint Series     1310WJ
Spline Major Diameter     1.390
Spline Count     31.000
Spline Type     30 Based On 31 Spline
Max Joint Angle     0.000
Universal Joint Retaining Width   E   2.188
Universal Joint Bearing Diameter   D   1.188
Centerline of Joint to End of Spline   J   5.062
Centerline of Joint to Face of Plug   F   1.438
Part Number of Lube Fitting
Dust Cap & Washer Kit Number
Slip Yoke Plug part number (included)     SPI-500166-22
Boot Kit Assembly part number (order separately)
Compatible U-Joint Kits     SPI-5-760X
Style     Snap Ring
Notes     Use boot #40465, clamps #40540-1,-2; Used in Ford TTB Axles
    cast

Known Idenfiying Marks (Casting/Forging numbers, etc.):

 Mark Location
  C2-3-2559   beneath bearing bore in yoke ear

This part is used in the following assemblies or kits:

SPI-72041-1X - Axleshaft Assy -- Obsolete

This part contains the following parts:

SPI-500166-22 - Slip yoke plug --



Related Item(s)



Spicer 5-760X Spicer 5-760X
Code: SPI-5-760X
Price: $34.86
In Stock
Quantity in Basket: none
U-Joint - Inside Snap Rings
SPICER 1310WJ Series, Non-Greasable
