This part's status is Obsolete
SPI-2-4-3581X has been replaced by SPI-2-4-3581-1X.
*** Call - Some may still be available ***

Spicer 2-4-3581X
	Quantity in Basket: None Code: SPI-2-4-3581X Price: $56.00 2 In Stock
	Quantity:

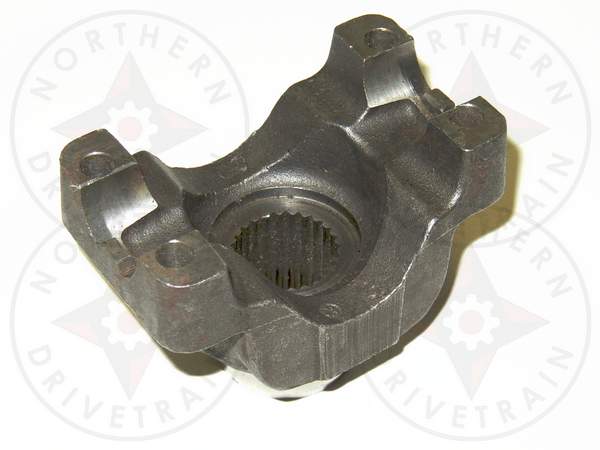

End Yoke Assy - Splined Bore 1330 series, U Bolt Style, Ø1.146x26 spline, Ø1.562 hub diameter

This part is a member of the following categories:

Search by Application * Axles * Dana * 27
Search by Application * Axles * Dana * 30
Search by Application * Axles * Dana * 30 - Reverse
Search by Application * Axles * Dana * 36 - Corvette
Search by Application * Axles * Dana * 44
Search by Application * Axles * Dana * 44 - Corvette & Viper
Search by Application * Axles * Dana * 44 IFS (Ford)
Search by Application * Axles * Dana * 44 - Reverse
Search by Application * Axles * Dana * 50
Search by Category * End Yokes * Splined Bore * 26 Splines * 1.146 - 26 Involute

U-Joint Series		1330
Spline Major Diameter		1.146
Spline Count		26.000
Spline Type		Involute
Spline Pressure Angle
Ground Hub Diameter	R	1.562
Length Thru Bore	Q	1.500
Centerline of Joint to End of Spline	S	3.000
Universal Joint Retaining Width	E	3.625
Universal Joint Bearing Diameter	D	1.062
Counterbore Depth		0.000
Joint Angle		20.000
Style		U Bolt
Compatible U-Joint Kits		SPI-5-213X,SPI-5-790X,SPI-5-812X
U-Bolt or Strap Assembly		SPI-2-94-28X
Bare Yoke part number (if assembly - included)		SPI-2-4-3571
Slinger Part Number (if assembly - included)		SPI-41498
Notes
Cast/Forged		Cast
