Spicer 3-2-1659-1
|
| |
|
Quantity in Basket:
None
Code: SPI-3-2-1659-1
Price: $126.25
|
| |
Flange Yoke
1410 series, 4xØ.484 Holes on 5.750BC, Ø4.803F pilot
|
This part is a member of the following categories:
Search by Category * Flange Yokes * 1410
| Design Style |
|
Snap Ring Design |
| U-Joint Series |
|
1410 |
| Universal Joint Retaining Width |
|
4.438 |
| Universal Joint Bearing Diameter |
D |
1.188 |

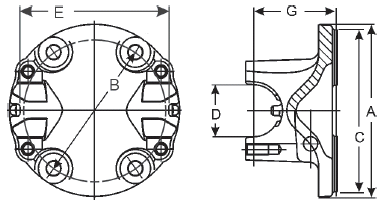

| Flange Diameter |
A |
6.750 |
| Bolt Circle Diameter |
B |
5.750 |
| Horizontal Distance Between Holes (center to center) |
|
0.000 |
| Vertical Distance Between Holes (center to center) |
|
0.000 |
| Bolt Hole Diameter |
|
.484-D |
| Bolt Hole Quantity |
|
4.000 |
| Pilot Diameter (M-Male, F-Female) |
C |
4.803F |
| Centerline of Joint to Flange Face |
G |
2.000 |
| Compatible U-Joint Kits |
|
SPI-5-160X,SPI-5-801X |
| Notes |
|
Bearing strap style yoke w/brake pilot and bolt pattern |
| Cast/Forged |
|
|
|
| |
|
