Spicer 3-4-12461-1
|
| |
|
Quantity in Basket:
None
Code: SPI-3-4-12461-1
Price: $61.96
1 In Stock
|
| |

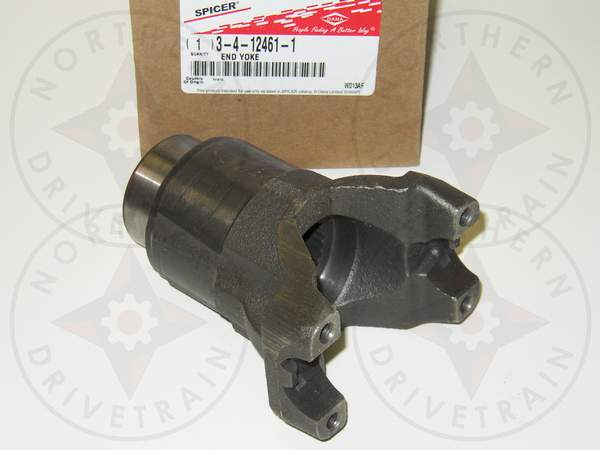

End Yoke - Splined Bore
1350 series, Strap Style, Ø1.498x29 spline, Ø1.969 hub diameter
|
This part is a member of the following categories:
Search by Category * End Yokes * Splined Bore * 29 Splines * 1.498 - 29 Involute
| U-Joint Series |
|
1350 |
| Spline Major Diameter |
|
1.498 |
| Spline Count |
|
29.000 |
| Spline Type |
|
Involute |
| Spline Pressure Angle |
|
|
| Ground Hub Diameter |
R |
1.969 |
| Length Thru Bore |
Q |
2.837 |
| Centerline of Joint to End of Spline |
S |
4.984 |
| Universal Joint Retaining Width |
E |
3.625 |
| Universal Joint Bearing Diameter |
D |
1.188 |
| Counterbore Depth |
|
1.026 |
| Joint Angle |
|
0.000 |
| Style |
|
Strap |
| Compatible U-Joint Kits |
|
SPI-5-178X,SPI-5-799X |
| U-Bolt or Strap Assembly |
|
SPI-3-70-28X |
| Bare Yoke part number (if assembly - included) |
|
|
| Slinger Part Number (if assembly - included) |
|
|
| Notes |
|
|
| Cast/Forged |
|
Cast |
|
| |
|
