Spicer 5-2-709-1
	Quantity in Basket: None Code: SPI-5-2-709-1 Price: $999,999.00 Obsolete
Flange Yoke 1610 series, 8xØ.375 Holes on 7.250BC, Ø6.435M pilot

Design Style		Half Round - Bolt Strap Style
U-Joint Series		1610
Universal Joint Retaining Width		5.312

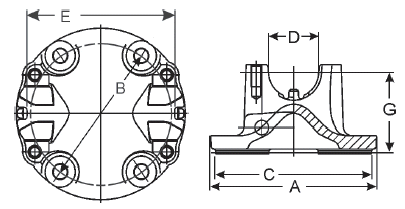

Universal Joint Bearing Diameter	D	1.875
Flange Diameter	A	8.000
Bolt Circle Diameter	B	7.250
Horizontal Distance Between Holes (center to center)		0.000
Vertical Distance Between Holes (center to center)		0.000
Bolt Hole Diameter		.375-D
Bolt Hole Quantity		8.000
Pilot Diameter (M-Male, F-Female)	C	6.435M
Centerline of Joint to Flange Face	G	2.750
Compatible U-Joint Kits		SPI-5-279X,SPI-5-674X
		0.000
Notes		B.S./H.R.style w/brake pilot.
Cast/Forged

Related Item(s)

Spicer 5-674X Code: SPI-5-674X Price: $100.35 In Stock Quantity in Basket: none U-joint kit 1610 Series, Half Round Joint, Greasable

Spicer 5-279X Code: SPI-5-279X Price: $93.40 In Stock Quantity in Basket: none U-joint kit 1610 Series Bearing Plate style, Greasable
