Spicer 6-1-5231
	Quantity in Basket: None Code: SPI-6-1-5231 Price: $499.62 Obsolete

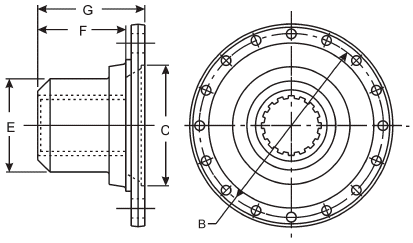

Companion Flange - Splined Bore 1710 series, Ø2.784x21 spline, Ø3.500 hub diameter 16xØ.438 Holes on 7.250BC, Ø6.438-M pilot

U-Joint Series		1710
Spline Major Diameter	D	2.784
Spline Count		21.000
Spline Type		Involute Spline
Pilot Bore Diameter	C	6.438-M
Bolt Circle Diameter	B	7.250
Bolt Circle Hole Diameter (D = Drilled, T = Tapped)		.438 D
Number of Holes		16.000
Brake Pilot Diameter		0.000
Ground Hub Diameter	E	3.500
Length Thru Bore	F	3.000
Flange Face to End of Hub	G	4.125
Bare Flange Part Number (if assembly)
Slinger Part Number (if assembly)
Notes		Part has 16 equally spaced holes
