Spicer 6-4-3041X
|
| |
|
Quantity in Basket:
None
Code: SPI-6-4-3041X
Price: $137.87
|
| |

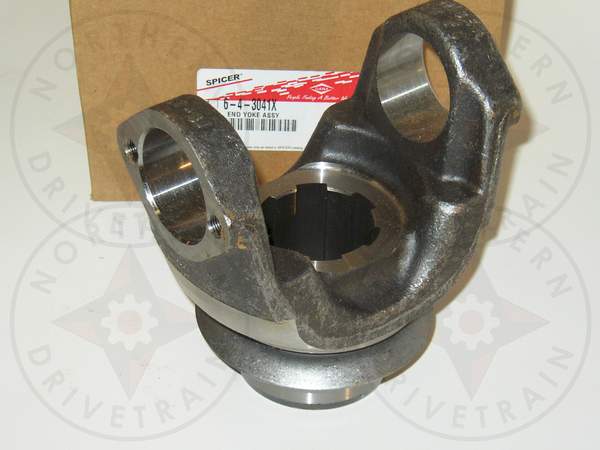

End Yoke Assy - Splined Bore
1710 series, Bolt Plate Style, Ø2.225x6 spline, Ø3.000 hub diameter
|
This part is a member of the following categories:
Search by Category * End Yokes * Splined Bore * 6 Splines * 2.225 - 6 Spline
| U-Joint Series |
|
1710 |
| Spline Major Diameter |
|
2.225 |
| Spline Count |
|
6.000 |
| Spline Type |
|
|
| Spline Pressure Angle |
|
|
| Ground Hub Diameter |
R |
3.000 |
| Length Thru Bore |
Q |
3.250 |
| Centerline of Joint to End of Spline |
S |
5.312 |
| Universal Joint Retaining Width |
E |
6.094 |
| Universal Joint Bearing Diameter |
D |
1.938 |
| Counterbore Depth |
|
0.000 |
| Joint Angle |
|
0.000 |
| Style |
|
Bolt Plate |
| Compatible U-Joint Kits |
|
SPI-5-280X,SPI-5-675X |
| U-Bolt or Strap Assembly |
|
|
| Bare Yoke part number (if assembly - included) |
|
SPI-6-4-3031 |
| Slinger Part Number (if assembly - included) |
|
SPI-829-W |
| Notes |
|
|
| Cast/Forged |
|
|
|
| |
|
