This part's status is Obsolete
.
|
Spicer 6.5-1-1871
|
| |
|
Quantity in Basket:
None
Code: SPI-6_5-1-1871
Price: $534.42
Obsolete
|
| |

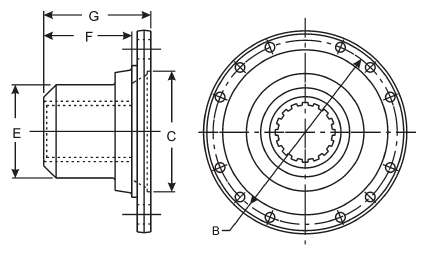

Companion Flange - Splined Bore
1810 series, Ø2.750x10 spline, Ø4.000 hub diameter
12xØ.438 Holes on 7.250BC, Ø7.750-F pilot
|
| U-Joint Series |
|
1810 |
| Spline Major Diameter |
D |
2.750 |
| Spline Count |
|
10.000 |
| Spline Type |
|
Spline |
| Pilot Bore Diameter |
C |
7.750-F |
| Bolt Circle Diameter |
B |
7.250 |
Bolt Circle Hole Diameter
(D = Drilled, T = Tapped) |
|
.438 D |
| Number of Holes |
|
12.000 |
| Brake Pilot Diameter |
|
0.000 |
| Ground Hub Diameter |
E |
4.000 |
| Length Thru Bore |
F |
2.938 |
| Flange Face to End of Hub |
G |
3.750 |
| Bare Flange Part Number (if assembly) |
|
|
| Slinger Part Number (if assembly) |
|
|
| Notes |
|
Hub machined for speedometer gear |
|
| |
|
