This part's status is Obsolete
.
|
Spicer 9-1-333
|
| |
|
Quantity in Basket:
None
Code: SPI-9-1-333
Price: $1,072.62
Obsolete
|
| |
Companion Flange - Circular w/Straight Round Bore
1880 series, Ø1.500 Bore
8xØ.625 Holes, Ø7.000-F pilot, Ø6.875 hub diameter
|
This part is a member of the following categories:
Search by Category * Companion Flanges * Circular with Straight Round Hole

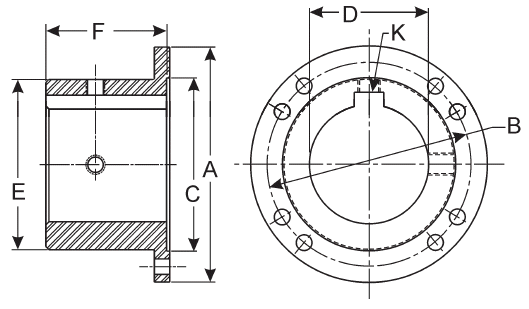

| U-Joint Series |
|
1880 |
| Bore Diameter |
D |
1.500 |
| Keyway Size |
K |
0.000 |
| Flange Diameter |
A |
9.500 |
| Pilot Bore Diameter |
C |
7.000-F |
| Bolt Circle Diameter |
B |
8.250 |
Bolt Hole Diameter
(D = Drilled, T = Tapped) |
|
.625-D |
| Number of Holes |
|
8.000 |
| Ground Hub Diameter |
E |
6.875 |
| Length Thru Bore |
F |
5.000 |
| Notes |
|
Rough bore - without keyway |
|
| |
|
