Neapco N3-2-1579F
|
| |
|
Quantity in Basket:
None
Code: NEA-N3-2-1579F
Price: $61.75
4 In Stock
|
| |

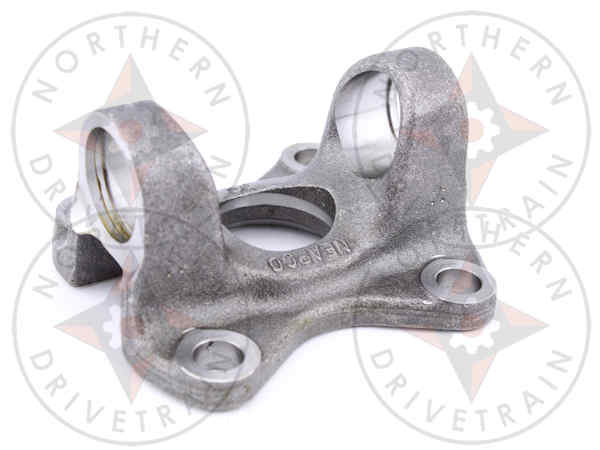

Flange Yoke
1350 series, 4xØ.500 Holes on 4.250BC, Ø2.000F pilot
|
The following parts may be used as alternates for this part:
Neapco N3-2-1579 -- Obsolete
Dana/Spicer 3-2-1579 -- Obsolete
Powertrain Industries 3502-1579 -- Obsolete
This part is a member of the following categories:
Search by Category * Flange Yokes * 1350
| Design Style |
|
Snap Ring Design |
| U-Joint Series |
|
1350 |
| Universal Joint Retaining Width |
|
3.875 |
| Universal Joint Bearing Diameter |
D |
1.188 |
| Flange Diameter |
A |
5.250 |
| Bolt Circle Diameter |
B |
4.250 |
| Horizontal Distance Between Holes (center to center) |
|
3.005 |
| Vertical Distance Between Holes (center to center) |
|
3.005 |
| Bolt Hole Diameter |
|
.500-D |
| Bolt Hole Quantity |
|
4.000 |
| Pilot Diameter (M-Male, F-Female) |
C |
2.000F |
| Centerline of Joint to Flange Face |
G |
1.625 |
| Compatible U-Joint Kits |
|
SPI-5-178X,SPI-5-1350X,SPI-SPL30-1X |
| |
|
20.000 |
| Notes |
|
|
| Cast/Forged |
|
Forged |
|
| |
|
