Spicer 10-4-431SX

Spicer 10-4-431SX Quantity in Basket: None
Code: SPI-10-4-431SX
Price: $37.91

6 In Stock



Quantity:

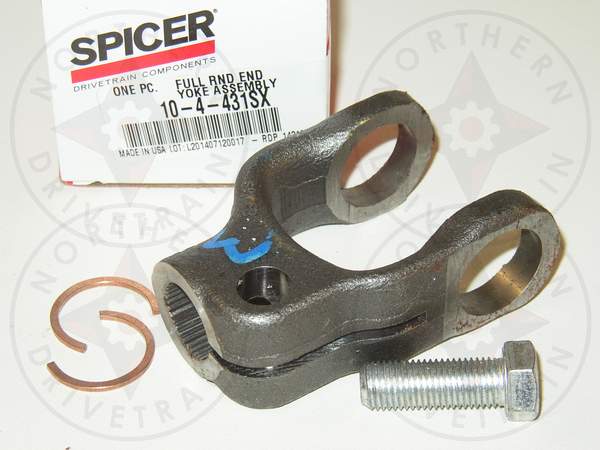

Steering Shaft Yoke
1000 series, 0.735x16 spline



This part is a member of the following categories:

Search by Category * End Yokes * Steering Yokes


General Design Type     Serrated Bore
U-Joint Series     1000
Spline Major Diameter     0.735
Spline Minor Diameter (Nominal)     0.696
Spline Type     16 Based On 36 Spline
Bore Diameter
Keyway Size     0.000
Bolt Hole Diameter     0.451
    2.120
Centerline of Bolt Hole to End of Hub   J   0.500
Top of Bolt Hole to Centerline of Spline   L   0.000
Center of Bolt Hole to Center of Spline   L1   0.525
Centerline of Joint to End of Hub   S   2.620
Universal Joint Retaining Width   K   1.500
Universal Joint Bearing Diameter   D   0.938
Compatible U-Joint Kits     SPI-5-103X
Notes
Cast/Forged     Forged






Related Item(s)



Spicer 5-103X Spicer 5-103X
Code: SPI-5-103X
Price: $24.39
In Stock
Quantity in Basket: none
U-Joint - Inside Snap Rings
SPICER 1000SG Series, Greasable
