This part's status is Obsolete
.

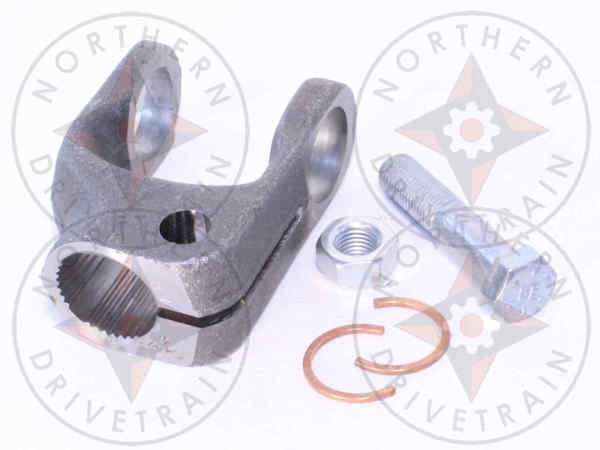

Spicer 10-4-851SX

Spicer 10-4-851SX Quantity in Basket: None
Code: SPI-10-4-851SX
Price: $69.16

Obsolete




Steering Shaft Yoke
1000 series, Ø0.990x14 spline



This part is a member of the following categories:

Search by Category * End Yokes * Steering Yokes


General Design Type     Serrated Bore
U-Joint Series     1000
Spline Major Diameter     0.990
Spline Minor Diameter (Nominal)     0.947
Spline Type     14 Based On 36 Spline
Bore Diameter
Keyway Size     0.000
Bolt Hole Diameter     0.451
    2.030
Centerline of Bolt Hole to End of Hub   J   0.470
Top of Bolt Hole to Centerline of Spline   L   0.852
Center of Bolt Hole to Center of Spline   L1   0.000
Centerline of Joint to End of Hub   S   2.500
Universal Joint Retaining Width   K   1.500
Universal Joint Bearing Diameter   D   0.938
Compatible U-Joint Kits     SPI-5-103X
Notes
Cast/Forged






Related Item(s)



Spicer 5-103X Spicer 5-103X
Code: SPI-5-103X
Price: $26.59
In Stock
Quantity in Basket: none
U-Joint - Inside Snap Rings
SPICER 1000SG Series, Greasable
