Spicer 3-1-751

Spicer 3-1-751 Quantity in Basket: None
Code: SPI-3-1-751
Price: $298.00

1 In Stock



Quantity:

Companion Flange - Splined Bore
1350/1410 series, Ø1.375x10 spline, Ø2.125 hub diameter
4xØ.438 Holes on 3.750BC, Ø2.750-F pilot



This part is a member of the following categories:

Search by Application * Transfer Cases * New Process * 200
Search by Category * Companion Flanges * Splined Bore * 10 Splines * 1.375 - 10 Spline

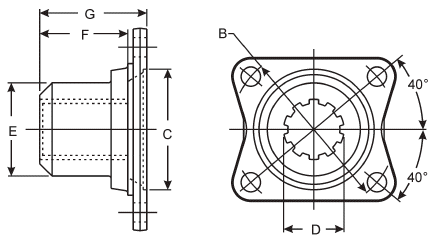

U-Joint Series     1350/1410
Spline Major Diameter   D   1.375
Spline Count     10.000
Spline Type     Spline
Pilot Bore Diameter   C   2.750-F
Bolt Circle Diameter   B   3.750
Bolt Circle Hole Diameter
(D = Drilled, T = Tapped)
  .438 D
Number of Holes     4.000
Brake Pilot Diameter     3.000
Ground Hub Diameter   E   2.125
Length Thru Bore   F   2.000
Flange Face to End of Hub   G   2.438
Bare Flange Part Number (if assembly)
Slinger Part Number (if assembly)
Notes     Forged
