*** Fits our HD center bearing kit and NWFab Titan output shafts ***


Northern Drivetrain 00172

Northern Drivetrain 00172 Quantity in Basket: None
Code: NDT-00172
Price: $166.87

12 In Stock



Quantity:

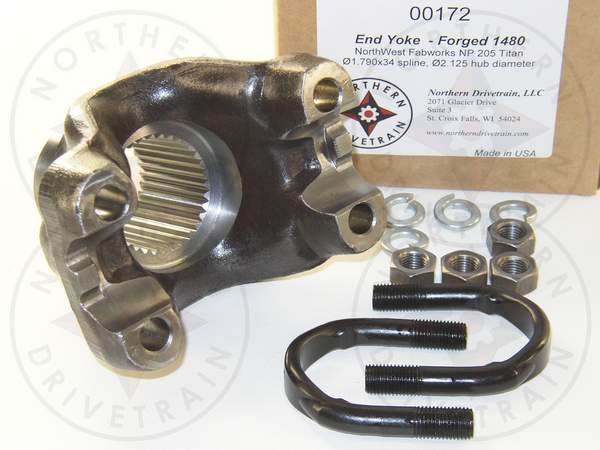

End Yoke - Forged - Splined Bore
1480 series, U Bolt Style, 1.790x34 spline, 2.125 hub diameter



This part is a member of the following categories:

Search by Category * End Yokes * Splined Bore * 34 Splines * 1.790 - 34 Involute


U-Joint Series     1480
Spline Major Diameter     1.790
Spline Count     34.000
Spline Type     Involute
Spline Pressure Angle     37.5 deg.
Ground Hub Diameter   R   2.125
Length Thru Bore   Q   2.000
Centerline of Joint to End of Spline   S   4.239
Universal Joint Retaining Width   E   4.188
Universal Joint Bearing Diameter   D   1.375
Counterbore Depth     0.000
Joint Angle     30.000
Style     U Bolt
Compatible U-Joint Kits     SPI-5-188X,SPI-SPL55X,SPI-SPL55-1X
U-Bolt or Strap Assembly     NDT-3-94-28X (included)
Bare Yoke part number (if assembly - included)
Slinger Part Number (if assembly - included)     Can use ROK-DEFR34-1 (not included)
Notes
Cast/Forged     Forged
