Spicer 3-2-1719
|
| |
|
Quantity in Basket:
None
Code: SPI-3-2-1719
Price: $77.70
2 In Stock
|
| |

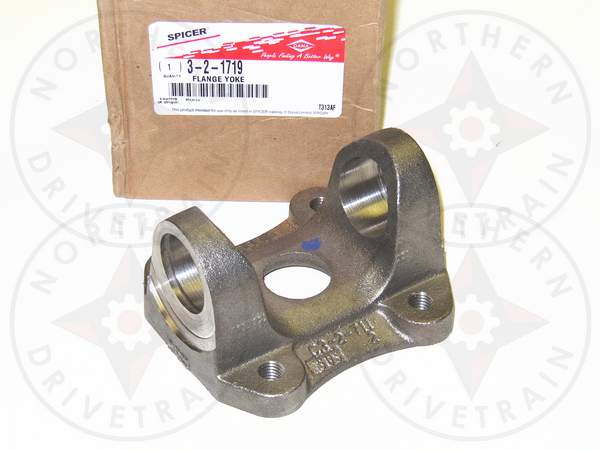

Flange Yoke
1480 series, 4x.472 Tapped Holes on 4.250BC, Ø2.680F pilot
|
The following parts may be used as alternates for this part:
This part is a member of the following categories:
Search by Category * Flange Yokes * 1480
| Design Style |
|
Snap Ring Design |
| U-Joint Series |
|
1480 |
| Universal Joint Retaining Width |
|
4.438 |
| Universal Joint Bearing Diameter |
D |
1.375 |
| Flange Diameter |
A |
5.875 |
| Bolt Circle Diameter |
B |
4.250 |
| Horizontal Distance Between Holes (center to center) |
|
3.005 |
| Vertical Distance Between Holes (center to center) |
|
3.005 |
| Bolt Hole Diameter |
|
M12x1.75 |
| Bolt Hole Quantity |
|
4.000 |
| Pilot Diameter (M-Male, F-Female) |
C |
2.680F |
| Centerline of Joint to Flange Face |
G |
1.800 |
| Compatible U-Joint Kits |
|
SPI-5-188X,SPI-SPL55X,SPI-SPL55-1X |
| |
|
12.000 |
| Notes |
|
12mm tapped holes in flange |
| Cast/Forged |
|
Cast |
Known Idenfiying Marks (Casting/Forging numbers, etc.):
| | Mark | | Location |
| |
C3-2-711
| |
cast into base of flange yoke |
