*** 28 spline flange fits 2017+ Ford Super 60 front axles. ***
|
Northern Drivetrain 00244
|
| |
|
Quantity in Basket:
None
Code: NDT-00244
Price: $218.65
5 In Stock
|
| |

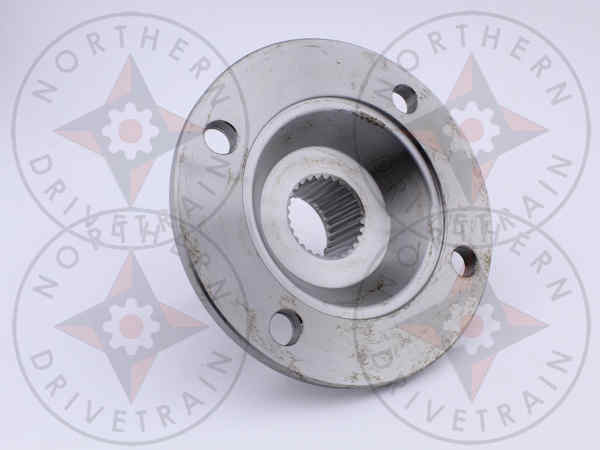

Companion Flange - Splined Bore
1410 series, Ø1.493x28 spline, Ø2.244 hub diameter
4 Drilled Holes on 4.750BC, Ø3.750-F pilot
|
This companion flange is designed to fit the new larger 28 spline Dana 60 pinions used in the 2017 and newer Super 60 applications (the new AdvanTEK Dana 60 - M256). It allows for standard 1410/1480 pattern flange yokes, often referred to as "Rockwell" pattern. The most commonly used flange yokes used with it are:
1410 = SPI-3-2-429
1480 = SPI-3-2-479
1550 = SPI-4-2-669
This part is a member of the following categories:
Search by Application * Search by Axle * Dana * 60
Search by Category * End Yokes * Splined Bore * 28 Splines * Ø1.493 - 28 Involute
| U-Joint Series |
|
1410/1480/1550 |
| Spline Major Diameter |
D |
1.493 |
| Spline Count |
|
28.000 |
| Spline Type |
|
Involute Spline |
| Pilot Bore Diameter |
C |
3.750-F |
| Bolt Circle Diameter |
B |
4.750 |
Bolt Circle Hole Diameter
(D = Drilled, T = Tapped) |
|
.506 D |
| Number of Holes |
|
4.000 |
| Brake Pilot Diameter |
|
0.000 |
| Ground Hub Diameter |
E |
2.244 |
| Length Thru Bore |
F |
1.745 |
| Flange Face to End of Hub |
G |
2.600 |
| Bare Flange Part Number (if assembly) |
|
|
| Slinger Part Number (if assembly) |
|
Can use SPI-231356 (not included) |
| Notes |
|
|
|
