*** Yoke has 1.380 x .120 counterbore in back of hub ***


Spicer 2-4-4601-1

Spicer 2-4-4601-1 Quantity in Basket: None
Code: SPI-2-4-4601-1
Price: $36.79

3 In Stock



Quantity:

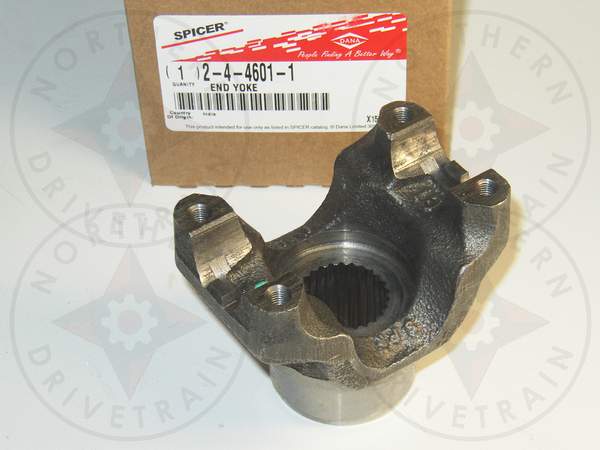

End Yoke - Splined Bore
1310 series, Strap Style, 1.146x26 spline, 1.844 hub diameter



This part is a member of the following categories:

Search by Application * Axles * AMC * Model 35
Search by Application * Axles * Dana * 35
Search by Application * Axles * Dana * 35 IFS
Search by Category * End Yokes * Splined Bore * 26 Splines * 1.146 - 26 Involute


U-Joint Series     1310
Spline Major Diameter     1.146
Spline Count     26.000
Spline Type     Involute
Spline Pressure Angle     45 deg.
Ground Hub Diameter   R   1.844
Length Thru Bore   Q   1.375
Centerline of Joint to End of Spline   S   2.938
Universal Joint Retaining Width   E   3.219
Universal Joint Bearing Diameter   D   1.062
Counterbore Depth     0.120
Joint Angle     22.000
Style     Strap
Compatible U-Joint Kits     SPI-5-153X,SPI-5-1310X,SPI-5-1310-1X
U-Bolt or Strap Assembly     SPI-2-70-18X
Bare Yoke part number (if assembly - included)
Slinger Part Number (if assembly - included)
Notes     Yoke has 1.380 x .120 counterbore in back of hub
Cast/Forged






Related Item(s)



Spicer 2-70-18X Spicer 2-70-18X
Code: SPI-2-70-18X
Price: $7.39
In Stock
Quantity in Basket: none
Bearing Strap
Fits 1210/1310/1330 U-Joints





Spicer 5-1310-1X Spicer 5-1310-1X
Code: SPI-5-1310-1X
Price: $28.86
In Stock
Quantity in Basket: none
U-Joint - Outside Snap Rings
SPICER 1310 Series, Greasable
Spicer Life Series, Lube fitting in bearing cap





Spicer 5-1310X Spicer 5-1310X
Code: SPI-5-1310X
Price: $20.51
In Stock
Quantity in Basket: none
U-Joint - Outside Snap Rings
SPICER 1310 Series, Non-Greasable
Spicer Life Series





Spicer 5-153X Spicer 5-153X
Code: SPI-5-153X
Price: $12.43
In Stock
Quantity in Basket: none
U-Joint - Outside Snap Rings
SPICER 1310 Series, Greasable
