Spicer 3-4-2111-1
	Quantity in Basket: None Code: SPI-3-4-2111-1 Price: $290.37 2 In Stock
	Quantity:

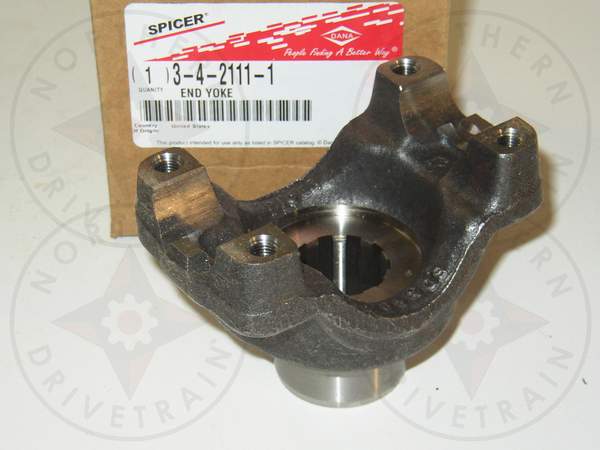

End Yoke - Splined Bore 1350 series, Strap Style, Ø1.125x10 spline, Ø1.552 hub diameter

This part is a member of the following categories:

Search by Application * Search by Axle * Dana * 18
Search by Application * Search by Axle * Dana * 20
Search by Application * Search by Axle * Dana * 44
Search by Application * Search by Axle * Dana * 44 IFS (Ford)
Search by Category * End Yokes * Splined Bore * 10 Splines * Ø1.125 - 10 Spline

U-Joint Series		1350
Spline Major Diameter		1.125
Spline Count		10.000
Spline Type
Spline Pressure Angle
Ground Hub Diameter	R	1.552
Length Thru Bore	Q	1.500
Centerline of Joint to End of Spline	S	3.000
Universal Joint Retaining Width	E	3.625
Universal Joint Bearing Diameter	D	1.188
Counterbore Depth		0.000
Joint Angle		20.000
Style		Strap
Compatible U-Joint Kits		SPI-5-178X,SPI-5-1350X,SPI-SPL30-1X
U-Bolt or Strap Assembly		SPI-3-70-28X
Bare Yoke part number (if assembly - included)
Slinger Part Number (if assembly - included)
Notes
Cast/Forged		Cast
